Example 2 — an embedded model

This page embeds an OpenSCAD model, lightweight by default: it shows a pre-rendered poster you click to load a ~0.6 MB rotatable 3D view — no OpenSCAD install, no in-browser compiler. Once loaded, use Customize (live) to switch to the full in-browser customizer and change parameters.

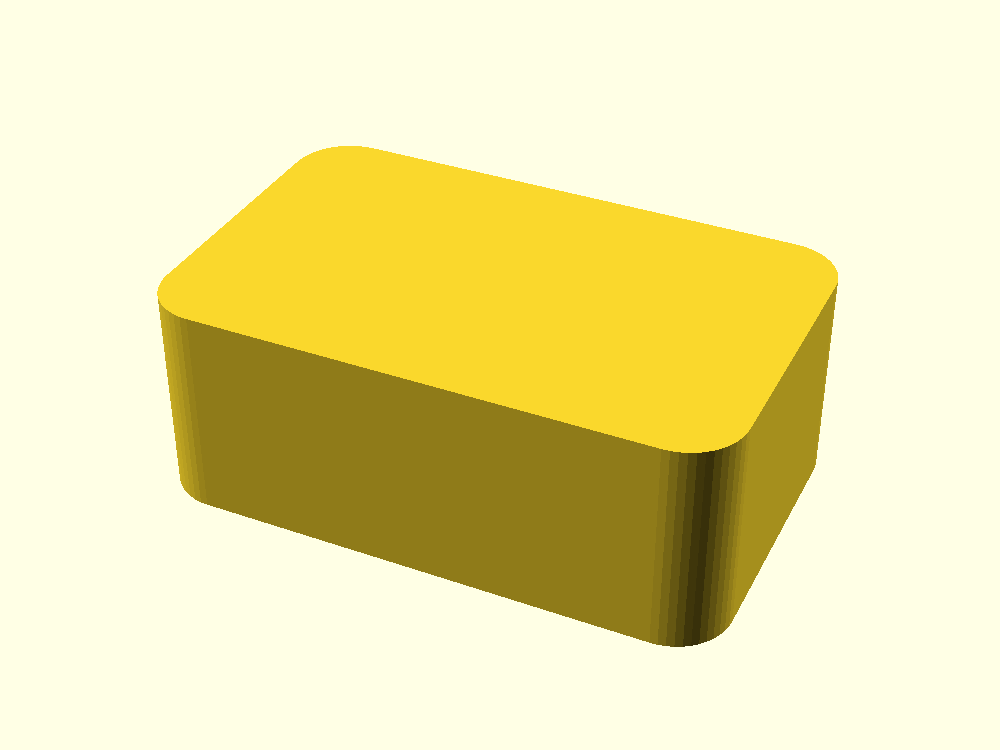

The model above is models/demo.scad:

/* [Box] */
length = 40; // [10:100]
width = 25; // [10:100]
height = 15; // [5:50]

/* [Rounding] */
radius = 4; // [0:0.5:20]

module rounded_box(l, w, h, r) {
  hull()
    for (x = [r, l - r], y = [r, w - r])
      translate([x, y, 0]) cylinder(h = h, r = r);
}

rounded_box(length, width, height, radius);

How the embed works

The model lives at models/demo.scad in this repo.
On deploy, .github/workflows/pages.yml pre-renders it to an OFF geometry + PNG poster with the OpenSCAD CLI.
openscad-publish.yml publishes two surfaces: a light static one at /models/demo/ (the default) and a live customizer at /models/demo-live/ (the upgrade).
The openscad-web GitHub Action assembles both into the site — served from this same site, no external host. The static mount is self-contained and light (~0.6 MB); the compiler runtime lives only in the customizer mount and loads only if a reader upgrades. (With several live models, those share one runtime on disk.)
The page embeds it with a one-line Liquid include:

{% include openscad.html model="demo" live="demo-live" height="520" title="Parametric Demo" %}

The // [min:max] comments in the source drive the customizer sliders, and the /* [Group] */ headers become collapsible sections in the live panel.

For a light-only embed, drop live=; for the live customizer by default, use surface="customizer".
